Size:320x290x95 Weight: 5.2kg (excluding external power supply) Input terminal: Phono x2(x2 can be added as an option)(RCA), LINE x6(When adding options, it decreases accordingly)(RCA), IN x1(6.3mm Phone) Output terminals: OUT x2 (XLR, RCA), CH OUT x1 (6.3mm Phone), REC OUT x1(RCA),MONITOR x1 (6.3mm Phone)
The frequency characteristics have been newly reviewed to achieve clearer mid-high range and heavier bass.
The channel part of the volume pot Alps RK-27, channel tone controls, and other input/output sections also use Alps pots. In conjunction with the new single CUE specification, a highly durable self-illuminated switch from NKK Switches is adopted. For the signal selection switches, highly durable C&K Switches switches are used for the input selection section and VU meter select switch.
Equipped with CUE and Master mix functions to achieve a more precise mix. The tone control part mounts a volume with a center click that allows you to intuitively know the flat position. The headphone jack part is equipped with an LED light so that you can confirm its location at a glance even in dark locations.

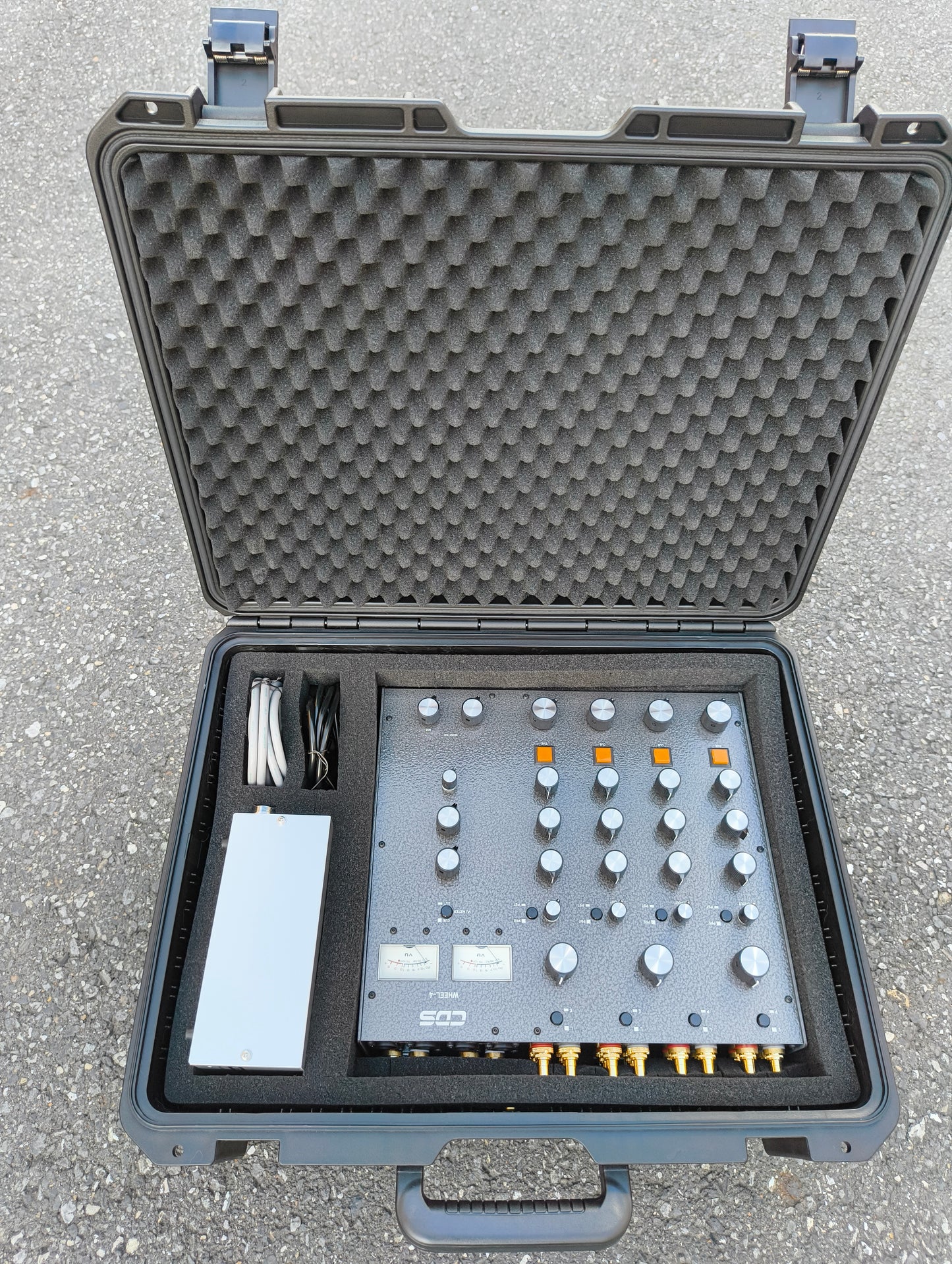

Added 3-band master isolator, channel out/pre, post-fader switching function, and REC out terminal (RCA) to the basic functions of the 2-channel mixer WHEEL-2. Up to 4 turntables can be connected as an option.
